CM-700
The CM-700S (Standard) and CM-700R (Recycle) are lean, mean, blowing machines that are capable of performing at modest rates with all fibers (Cellulose, Fiberglass, Rockwool), and all applications (attic, dense packing, sidewall spray-on). Cutting edge twin ‘scalping augers’, rugged design, and simple operation offers a reliable, robust machine with simple maintenance.
This is a carousel with one large image and a track of thumbnails below. Select any of the image buttons to change the main image above.

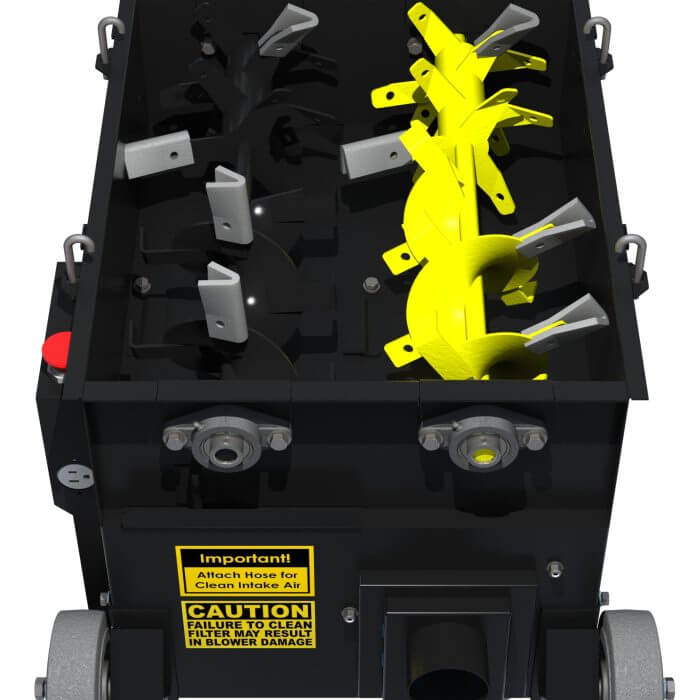

- Dual ‘scalping’ augers enhance fiber conditioning

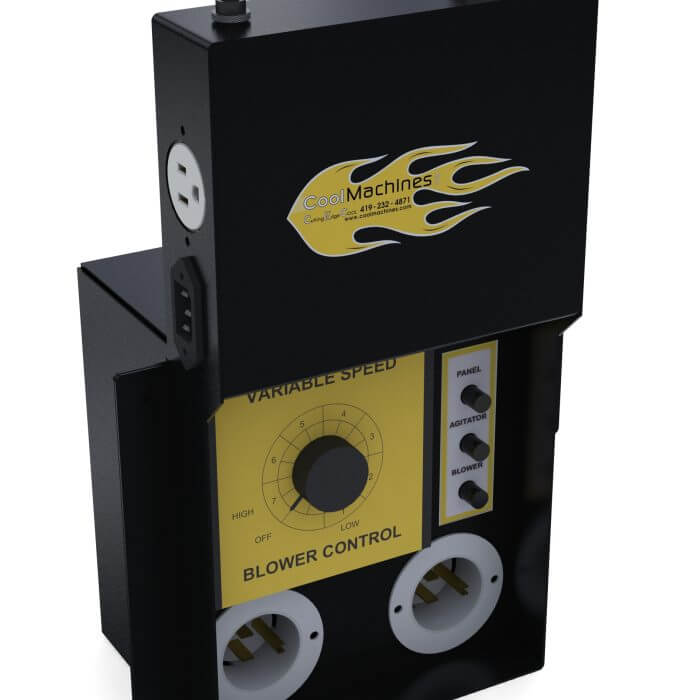

- Modular control panel with plug-in receptacles
- Quick release dual augers for easy airlock maintenance
- Quick release hopper for easy handling
- Weight: 180 lbs.
- Dimensions: 28″L x 22″W x 58″H
- Hopper Capacity: 7.25 ft.3
- Airlock Size: 8” dia. x 10” long 4.0 with 2.5” output tube

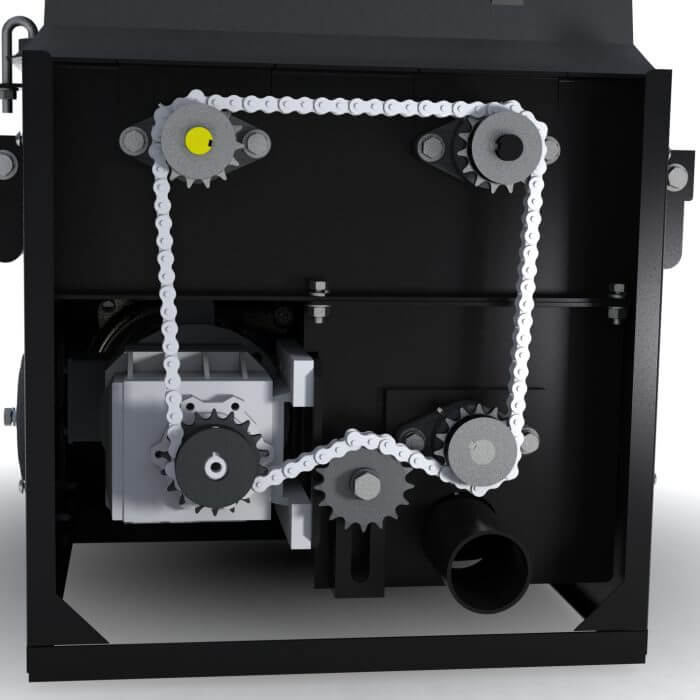

- Drive Motor: 1/3 h.p
- Blower Options:
- 8 amp /104 cfm. (Standard)
- 13 amp /140 cfm. (Deluxe)
- Power Requirements (120 volt):
- 15/15 amp, double input (Standard)
- 15/15 amp, double input (Deluxe)
- Cellulose: 950 lbs./hr.
- Fiberglass: 400 lbs./hr.
- Rockwool: 600 lbs./hr.
*CM 700-Recycle features:
- Hopper chute accommodates most generic size trash bins
- Ball valve bypass allows for use as a Recycle or Standard machine
