CM-4500

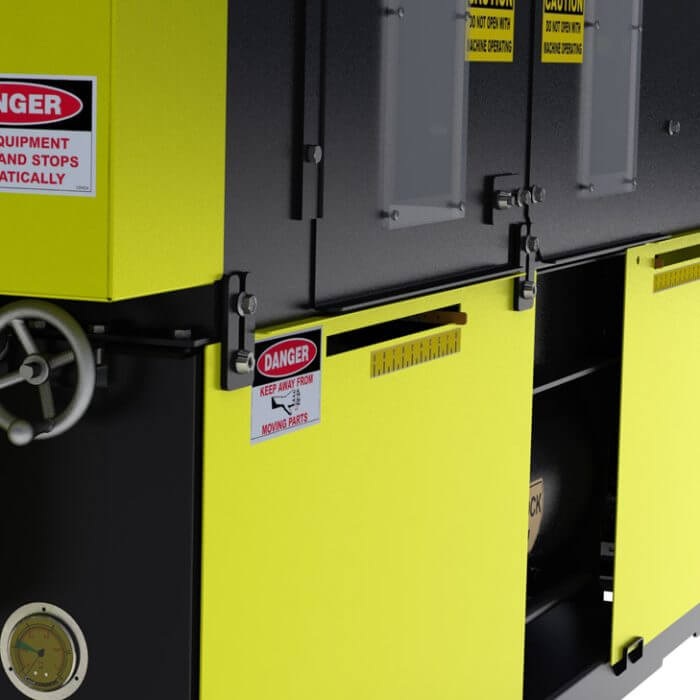

The CM-4500, also known as the “Big Dog”, can do it all. This machine combines a big dry hopper with fast vacuum speeds and a simple dual slide gate control to create a streamlined spray process while also reducing your labor costs.
This is a carousel with one large image and a track of thumbnails below. Select any of the image buttons to change the main image above.
- Weight:
- 2470 lbs. (5 hp PD Blower)
- 2620 lbs. (10 hp PD Blower)
- Dimensions: 129”L x 35”W x 89”H
- Hopper Capacity: 125 ft.3 (20 bags cellulose/6 bags fiberglass)
- Airlock Options: (4″ OD Output @ 6 psi)
- 12” dia. x 20” Long
- 12″ dia. x 24″ Long
- Drive Motors: 3 h.p.

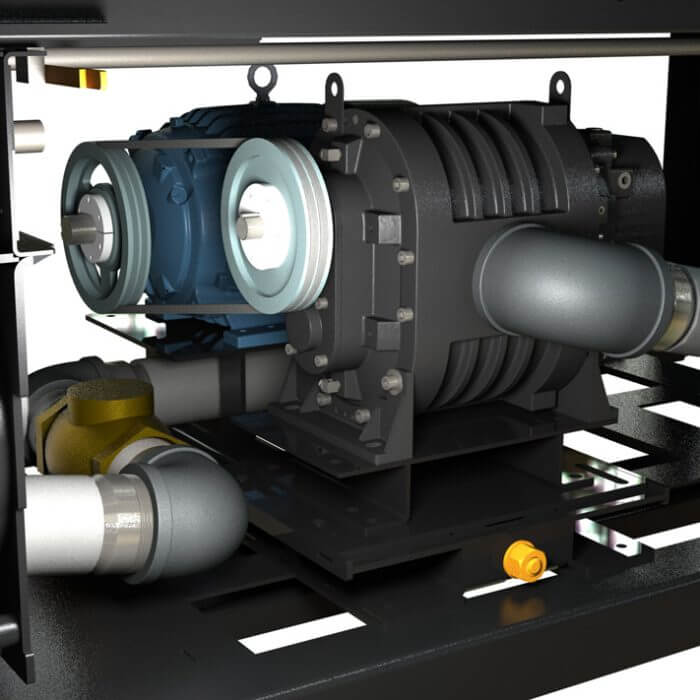

- PD Blower Options:
- 5 hp / 3L, 165 cfm
- 10 hp / 4L, 280 cfm
- Power Requirements:
- 240 volt, 30 amp. 1-phase (5 hp PD Blower)
- 480 volt, 20 amp. 3-phase (10 hp PD Blower)
- Cellulose: 4500 lbs./hr. (*5400 lbs./hr.)
- Fiberglass: 1800 lbs./hr. (*2400 lbs./hr.)
- Rockwool: 2200 lbs./hr. (*2700 lbs./hr.)
- Wall Spray Cellulose: 40 bags/hr.
*optional 12″ x 24″ airlock and 10 hp PD Blower
